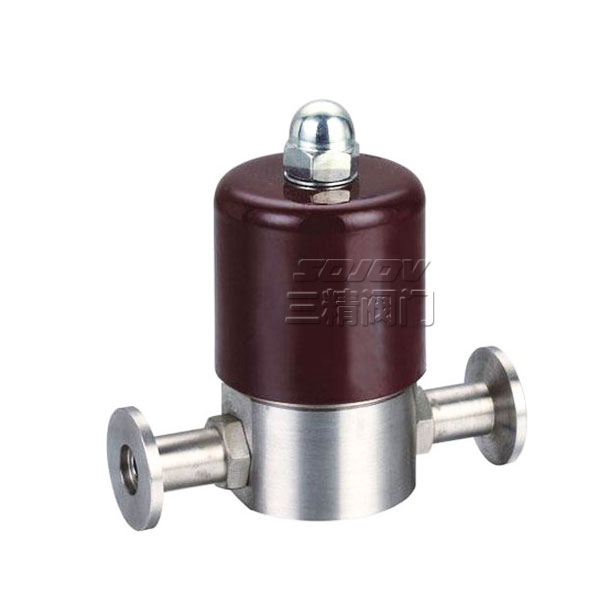

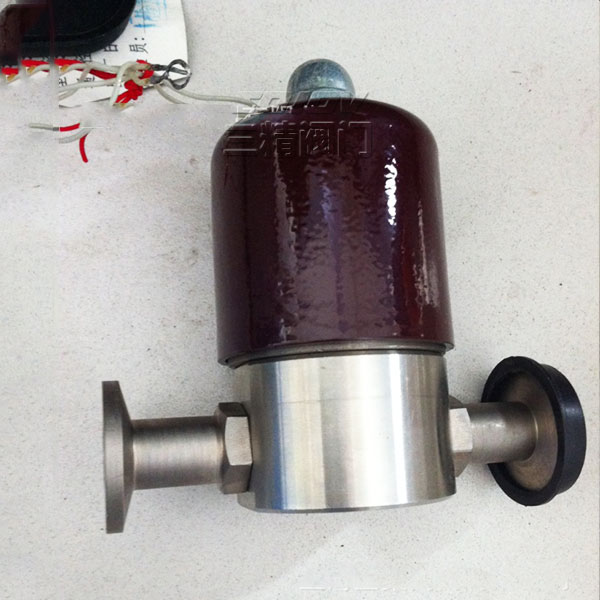

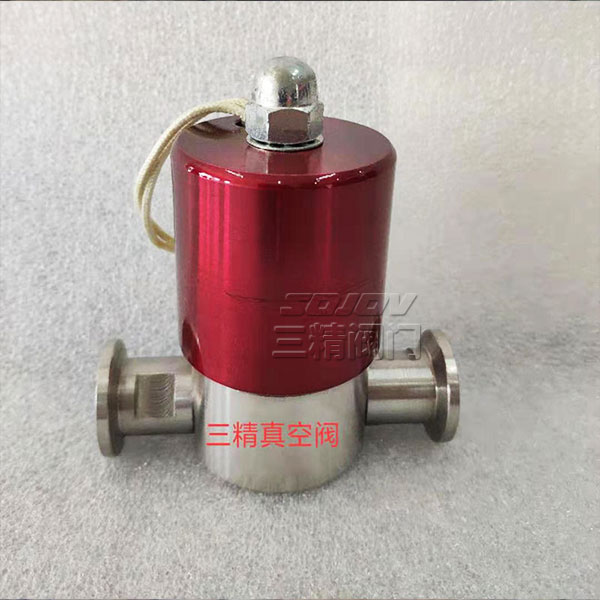

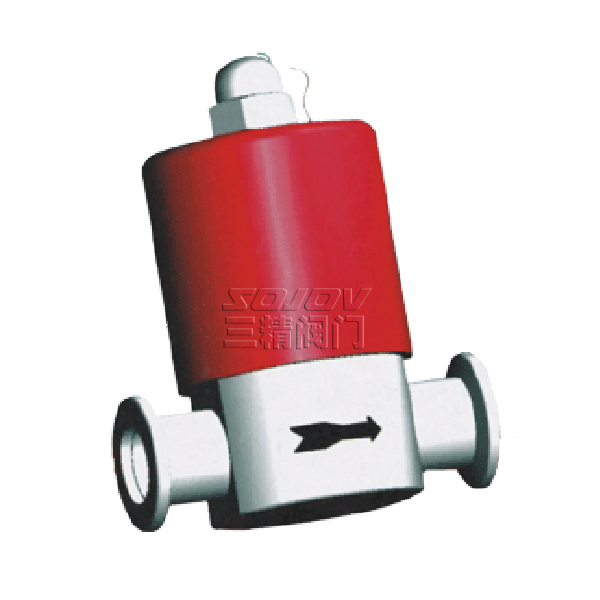

                     GDC-5電磁高真空擋板閥
GDC-5型電磁高真空擋板閥是連接在真空管路上,用來接通或截止真空系統中的氣流,或作充氣閥用。當通電時將P、A端管路接通、斷電時切斷P、A端管路,保持P端真空系統的真空度。適用介質為純凈空氣和非腐蝕性氣體。
                    下一個產品:GDC-J電磁高真空擋板閥
上一個產品:GD高真空擋板閥






GDC-5型電磁高真空擋板閥概述
GDC-5型電磁高真空擋板閥是連接在真空管路上,用來接通或截止真空系統中的氣流,或作充氣閥用。當通電時將P、A端管路接通、斷電時切斷P、A端管路,保持P端真空系統的真空度。適用介質為純凈空氣和非腐蝕性氣體。
Electro High Vacuum Flapper Valve
GDC-5 electro high vacuum flapper valve is mounted in vacuum pipeline to put through or cut off the airflow in vacuum system, or used as a charging vale. When power is connected, pipes at P and A will be put through, and when power is disconnected, pipes at P and A will be cut off, to keep the vacuum system at P vacuum. Applicable medium can be pure air and noncorrosive gases.
GDC-5型電磁高真空擋板閥主要技術性能
Main Technical Performance
| 公稱通徑:Nominal Diameter | 5mm |
| 適用范圍:Applicability | 105~1.3×10-4Pa |
| 閥門漏率:Valve Leak Rate | ≤1.3×10-4Pa.L/S. |
| 適用溫度:Applicable Temperature | -30~+50℃ |
| 線圍溫升:Coil Temperature Rise | ≤65℃ |
| 電源電壓:Mains Voltage | 220V/50Hz |
| 安裝方向:Mounting Direction | 垂直或水平 |
